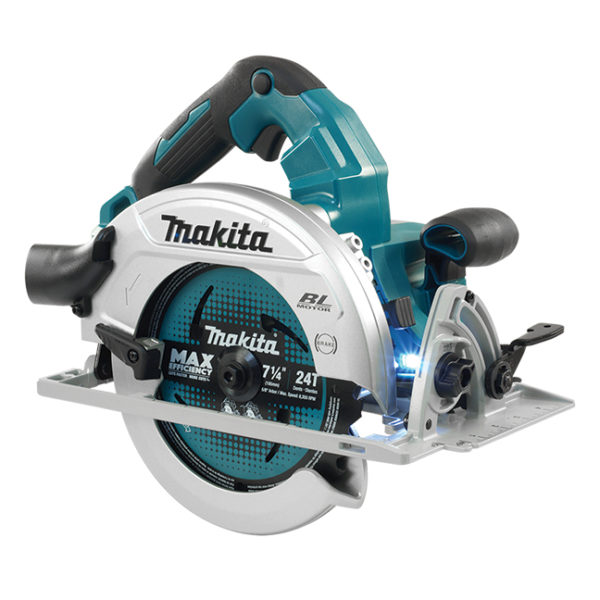

7-1/4″ Cordless Circular Saw with Brushless Motor

Model No: DHS782Z

Cutting Capacity of 2-3/8″ (60 mm)

Guide Rail Compatible Base Design Requires No Additional Adapters!

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • Blower feature keeps cut line free of sawdust
  • Lightweight design with die-cast magnesium baseplate, blade casing and safety cover
  • LED charge level indicator displays approximate remaining battery power
  • Twin LED job lights with pre-glow and afterglow, and blower function keeps cut line visible for precise cutting performance
  • Trigger-lock button prevents accidental start-up for increased safety
  • Bevel capacity of 0o – 48o with positive stop at 22.5o and 45o
  • High performance and lightweight design with magnesium blade case and base plate
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Use with optional hook set part no. 1993876-8
Category:

Description

Battery Capacities

Two 18V Li-Ion

Blade Diameter

7-1/4″ (185 mm)

Arbor

5/8″ (15.88 mm)

Max. Cutting Depth:

2-3/8″ (60 mm

45o

1-11/16″ (43 mm)

48o

1-5/8″ (41.0 mm)

No Load Speed

6,000 RPM

Vibration Level

 2.5 m/s²

Noise Level

93 dB(A)

Net Weight

8.4 lbs (3.8 kg)

Overall Length

13-3/4″ (348 mm)
